Description

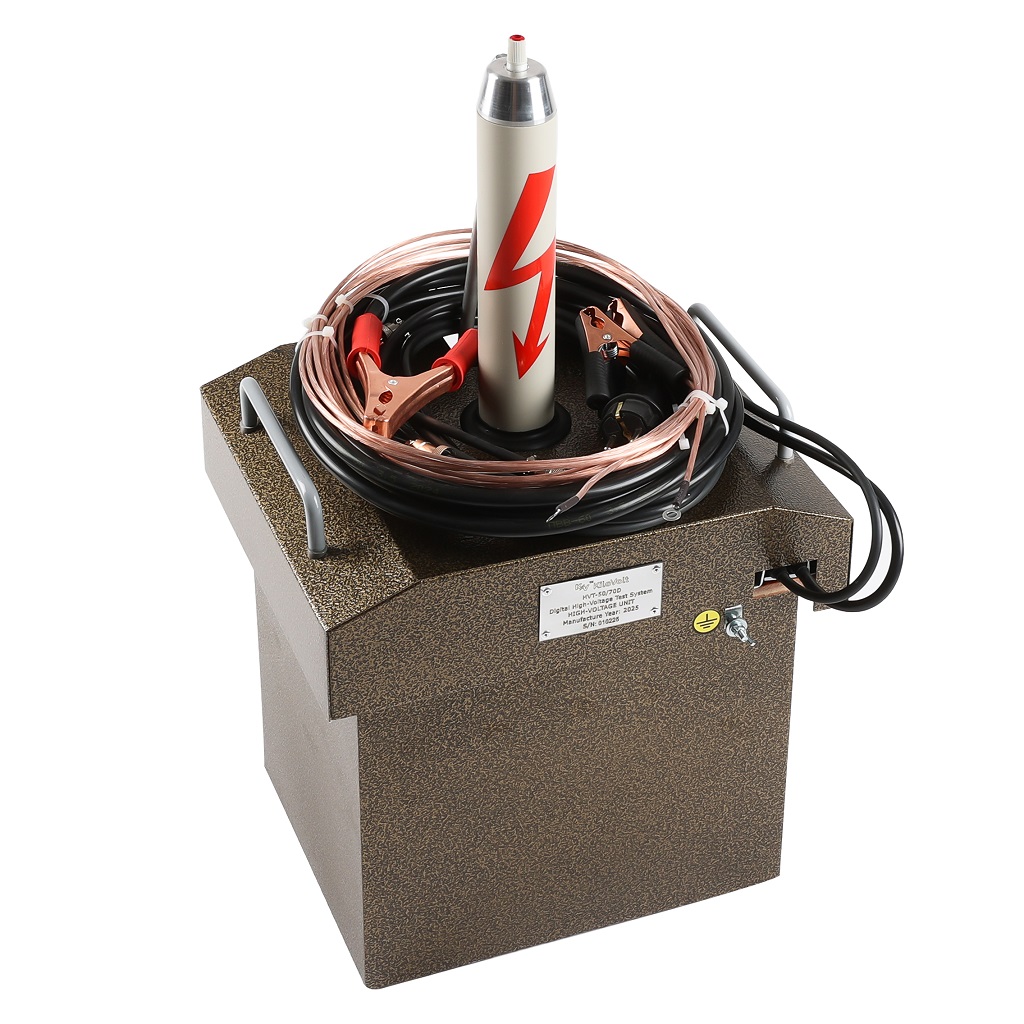

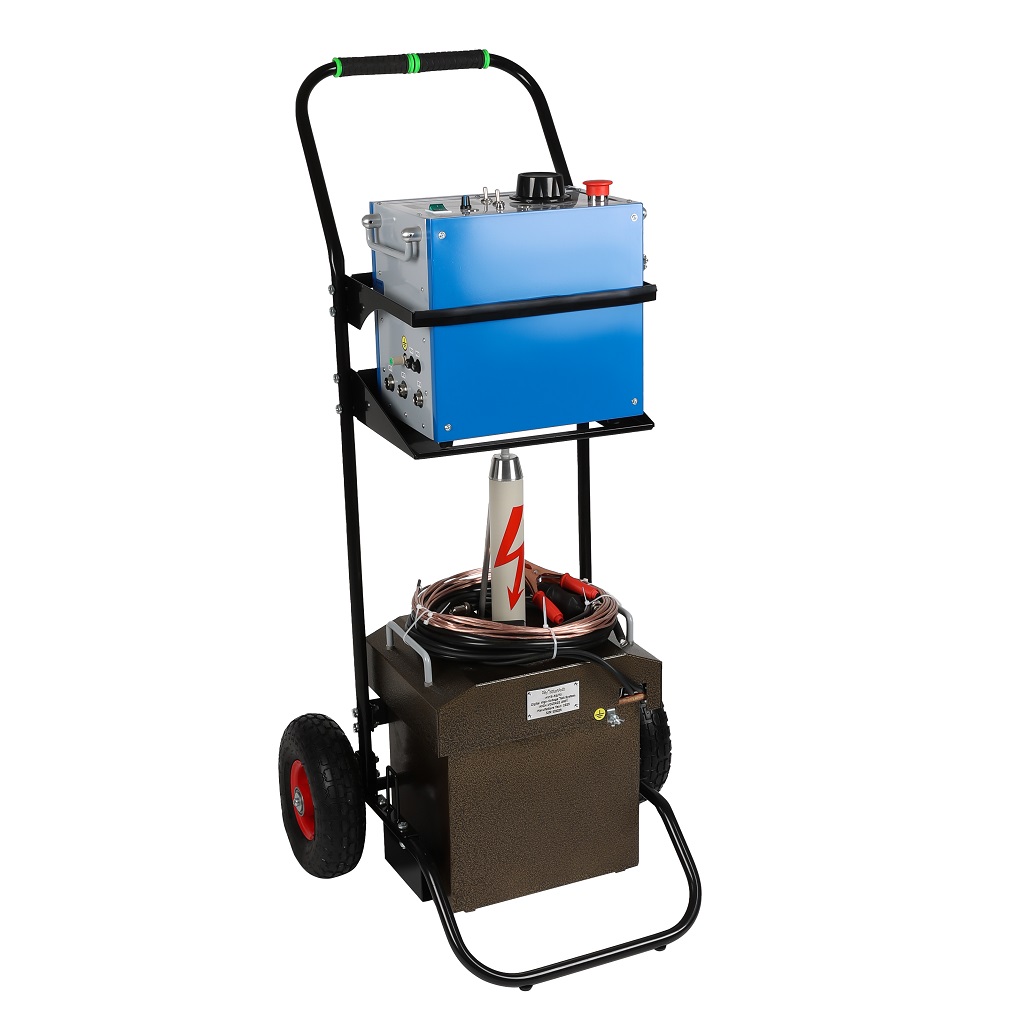

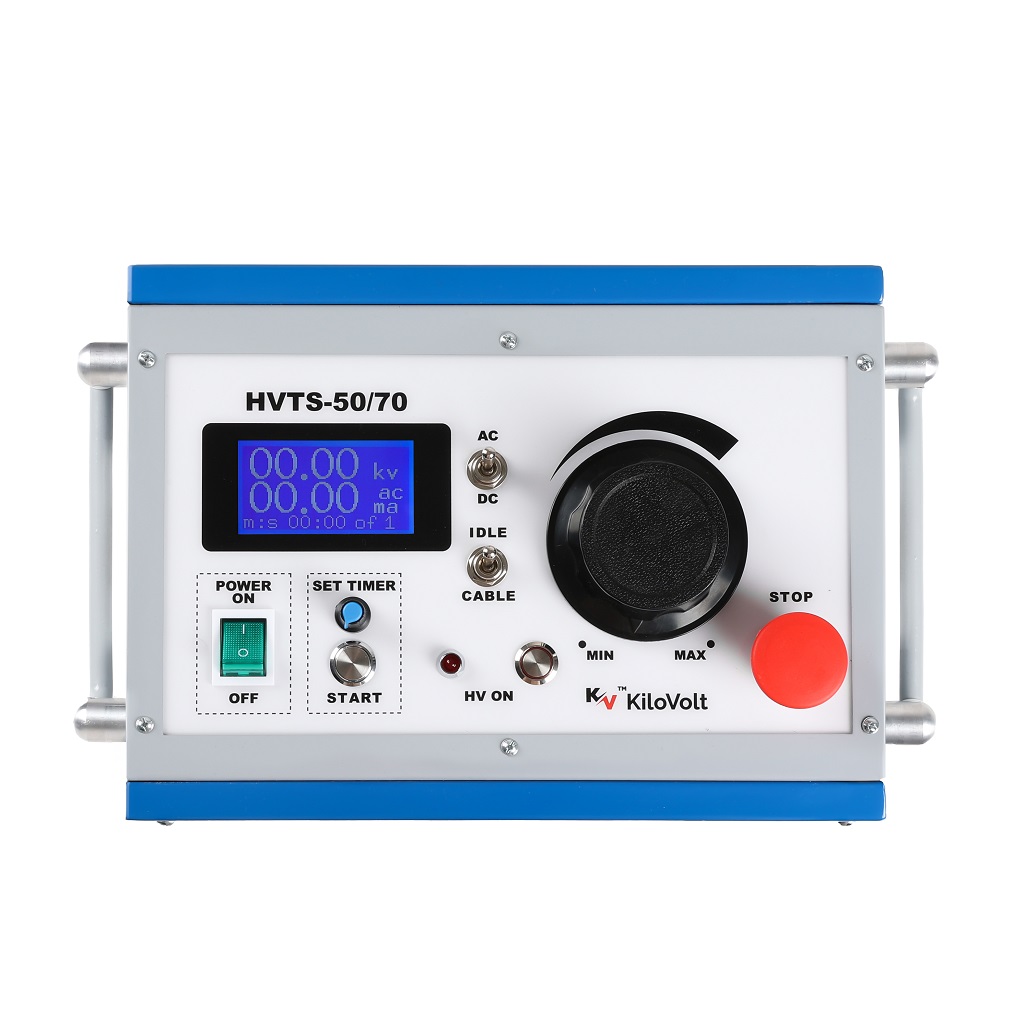

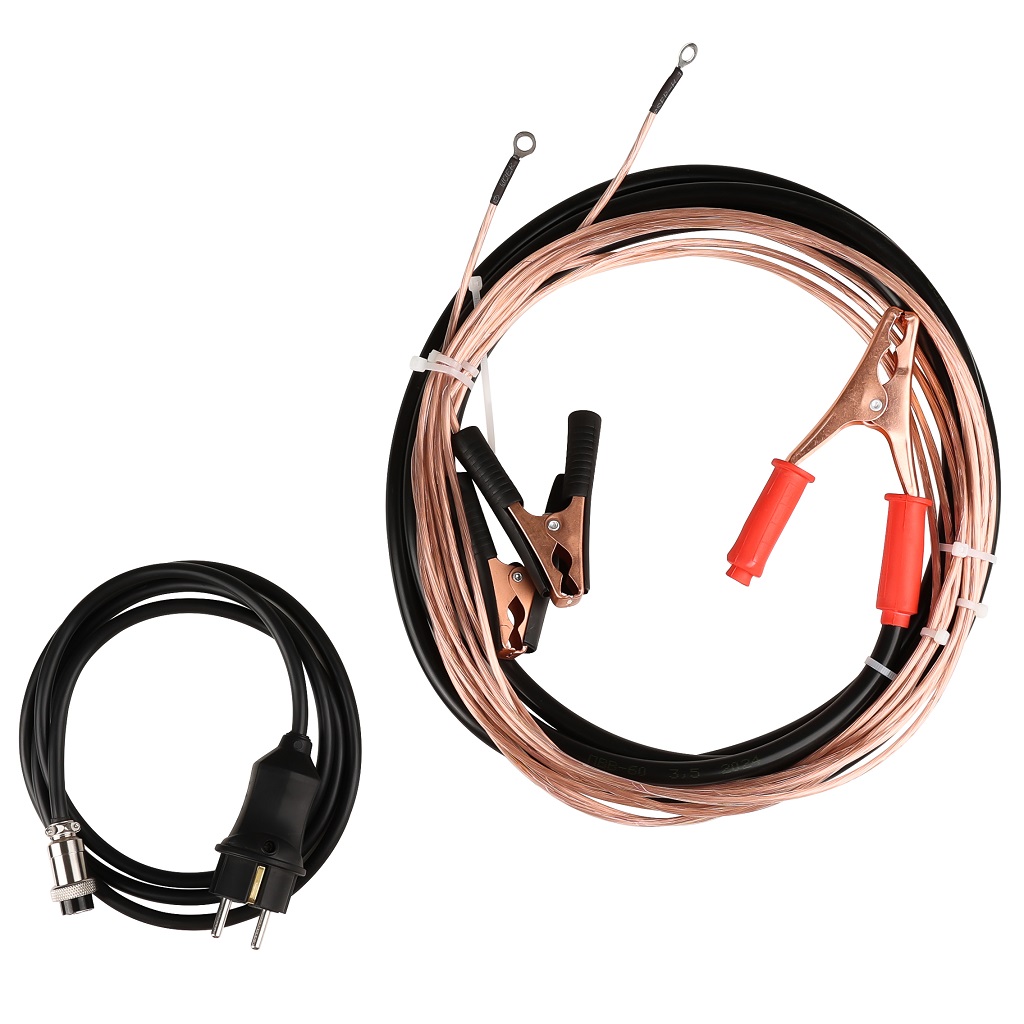

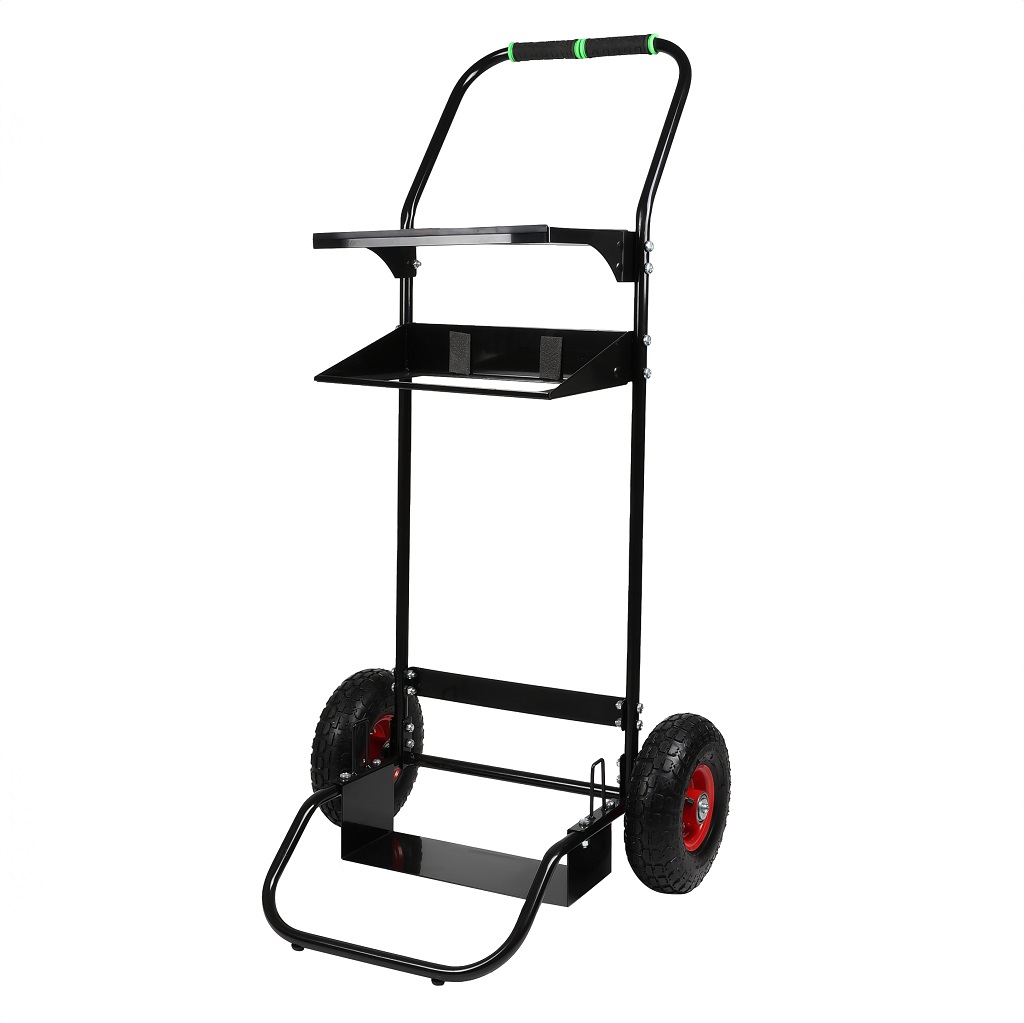

HVTS-50/70 complete test system in a mobile package, simple to set-up and operate, lightweight and ruggedly constructed. System consists of a combination control and regulator enclosure and separate high voltage section. Test voltage is continuously adjustable from zero to full output, with a zero-start interlock. All high-voltage connections are recessed to prevent accidental contact with high voltage. During testing, high voltage will automatically shut down within 50 ms of arcing or exceeding the preset trip level. Visual alarm alert the operator upon failure. The AC/DC High-Pot Tester provides a switch to select either ac or dc test voltage. HVTS-50/70 line is equipped with digital metering and easy to use controls.
KiloVolt represents a complete line of the most advanced AC/DC High-Voltage Test Systems with voltage and power ratings to meet your testing requirements. Our systems function in compliance with recognized national and international industry testing standards. AC/DC High-Voltage Test Systems available from Kilovolt are designed for safety and ease of operation, and readily adapt to development, maintenance or production testing.
PRODUCTS REQUIRING DIELECTRIC TESTING INCLUDE:
|
|
TYPICAL TESTING APPLICATIONS:
|
|
TECHNICAL SPECIFICATIONS:
| Output voltage | 50 kV (AC) / 70 kV (DC) | |
| Output current | 45 mA (AC) / 15 mA (DC) | |
| Voltage measuring resolution | 0.01 kV | |
| Current measuring resolution | 0.1 mA | |
| Voltage and current accuracy | ± 3 % | |
| Continuous operating mode | 30 min | |
| Test timer range | 30 min | |
| General | ||
| Power supply | 230 V ± 10 % | |
| Power frequency | 50 (60) Hz | |
| Maximum power consumption | 2.5 kVA | |
| Dimensions (H×W×D) | 315×366×220 mm (CU), 670×360×300 mm (HVU) | |
| Weight | 15 kg (CU), 42.5 kg (HVU) | |
| Operational environment | ||
| Operational temperature | -10 to +40 °C | |
| Storage temperature | -10 to +45 °C | |
| Relative humidity | 85 % (non-condensing) | |
